700 Series 701/702

Wagner Engineering is committed to helping you maintain your vessel's steering. We have a large inventory of 700 Series 701/702 parts available at reasonable prices for immediate shipment. Parts not available off the shelf can usually be manufactured within a short time. Please contact your dealer or Wagner Engineering for details.

Diagram (tap or hover over diagram to zoom)

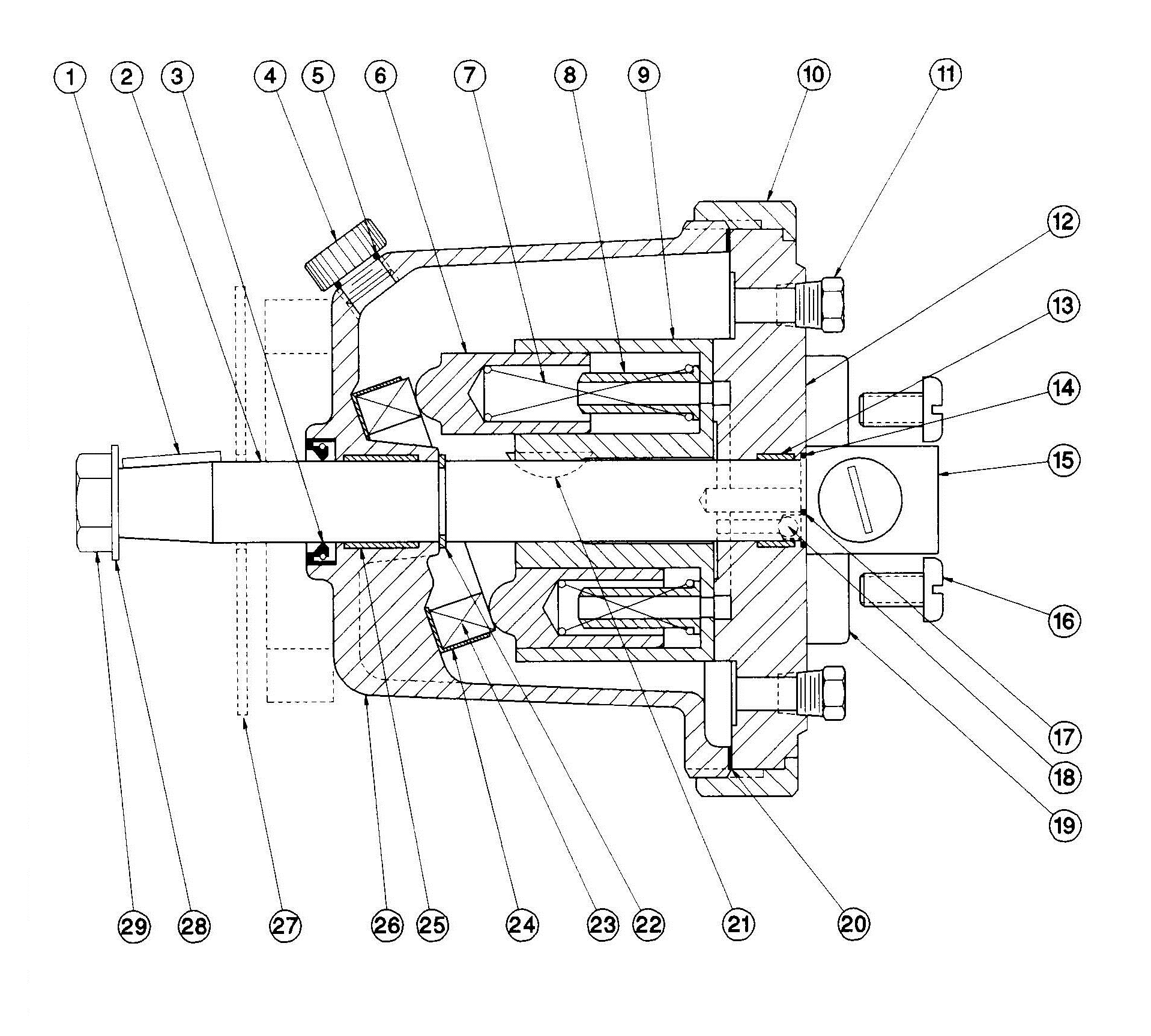

700 Series 701/702 Helm Pump Assembly Diagram

Parts Available

We have all of the parts listed below available for same day shipment from our factory at competitive list prices. To order simply call Wagner Engineering at +1-(604)-988-1111 ext 148

Our dealers also carry inventory and all of these parts can also be ordered from your local dealer. Local dealers may also sell for less.

ITEM PART NUMBER DESCRIPTION LIST PRICE
3, 5, 14, 17, 20 WA-119-0002 701/702 helm pump seal kit
(includes the following -
1x shaft seal PN WA-10-500013,
1x o-ring PN WA-11-106111,
1x o-ring PN WA-11-106018,
2x o-ring PN WA-11-106016 &
1x gasket PN WA-10-300012)
$26.00
2 WA-320-0010 701 helm pump shaft $116.00
4 WA-41-128003 Plastic plug $12.00
7 WA-31-100064 Spring $11.00
8 WA-92-991001 Piston insert $6.00
11 WA-41-102007 Brass plug $2.00
13 WA-320-0190 Bearing $18.00
15 WA-400-0001 Lockvalve $237.00
16 WA-51-279003 Capscrew $2.00
18 WA-21-300004 Check ball $1.00
19 WA-92-991002 Clamp bar $11.00
21 WA-51-110004 Woodruff key $2.00
22 WA-51-300014 Snap ring $1.00
23 WA-21-100004 Bearing $22.00
24 WA-91-990002 Bearing cage $14.00
25 WA-320-0189 Bearing $18.00

Prices are ex-works North Vancouver, British Columbia. Shipping and handling charges will depend on location and service required.

There are currently no parts available by special order from Wagner Engineering. Please contact your dealer or Wagner Engineering at +1-(604)-988-1111 ext 148 for details.

If you are looking for a part that isn't listed on this page, please inquire directly to Wagner Engineering at +1-(604)-988-1111 ext 148 or at one of your local dealers
