Model B1-B2

Wagner Engineering is committed to helping you maintain your vessel's steering. Please contact your dealer for details.

Diagram (tap or hover over diagram to zoom)

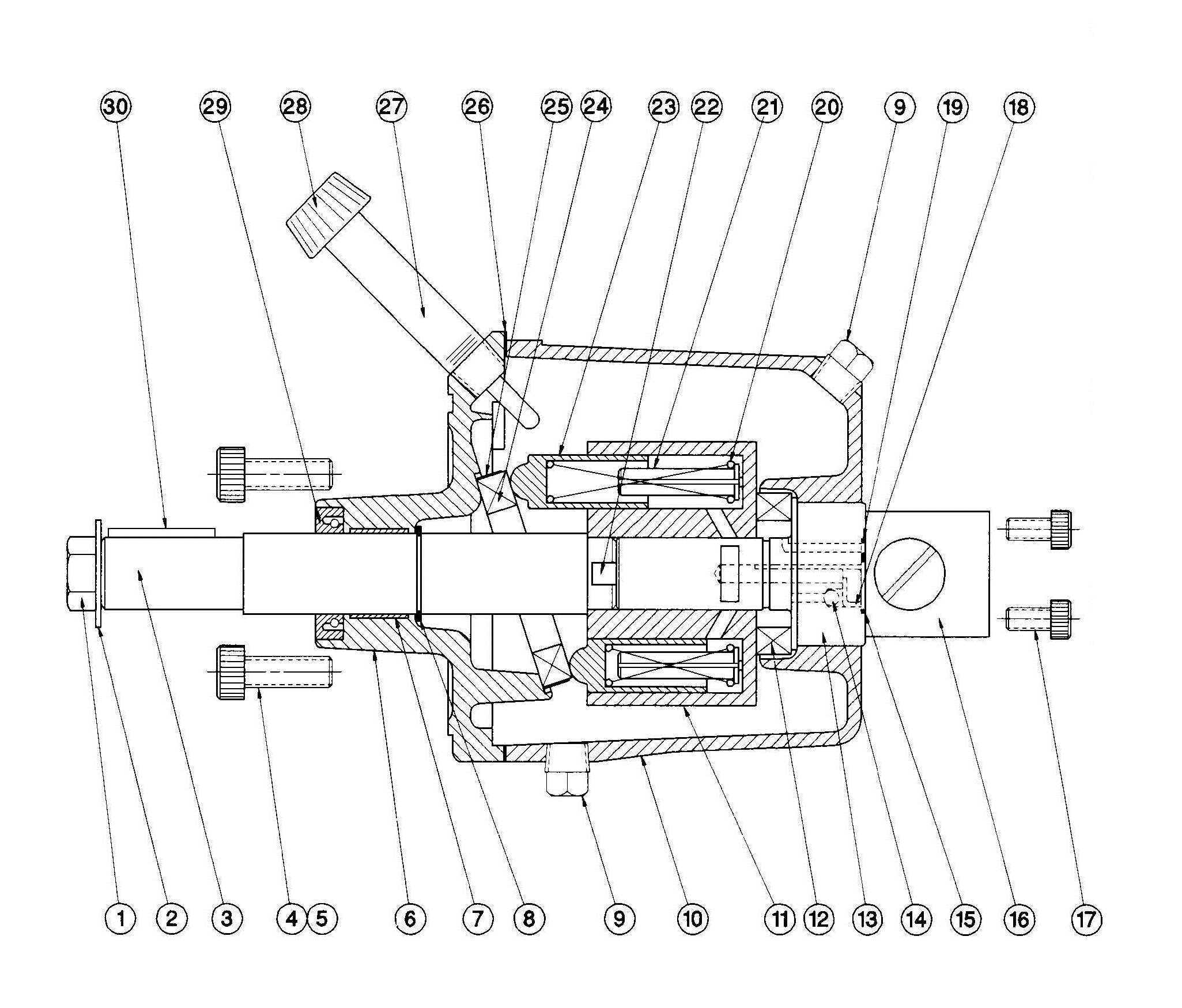

Model B1-B2 Helm Pump Assembly Diagram

Check Ball Orientation

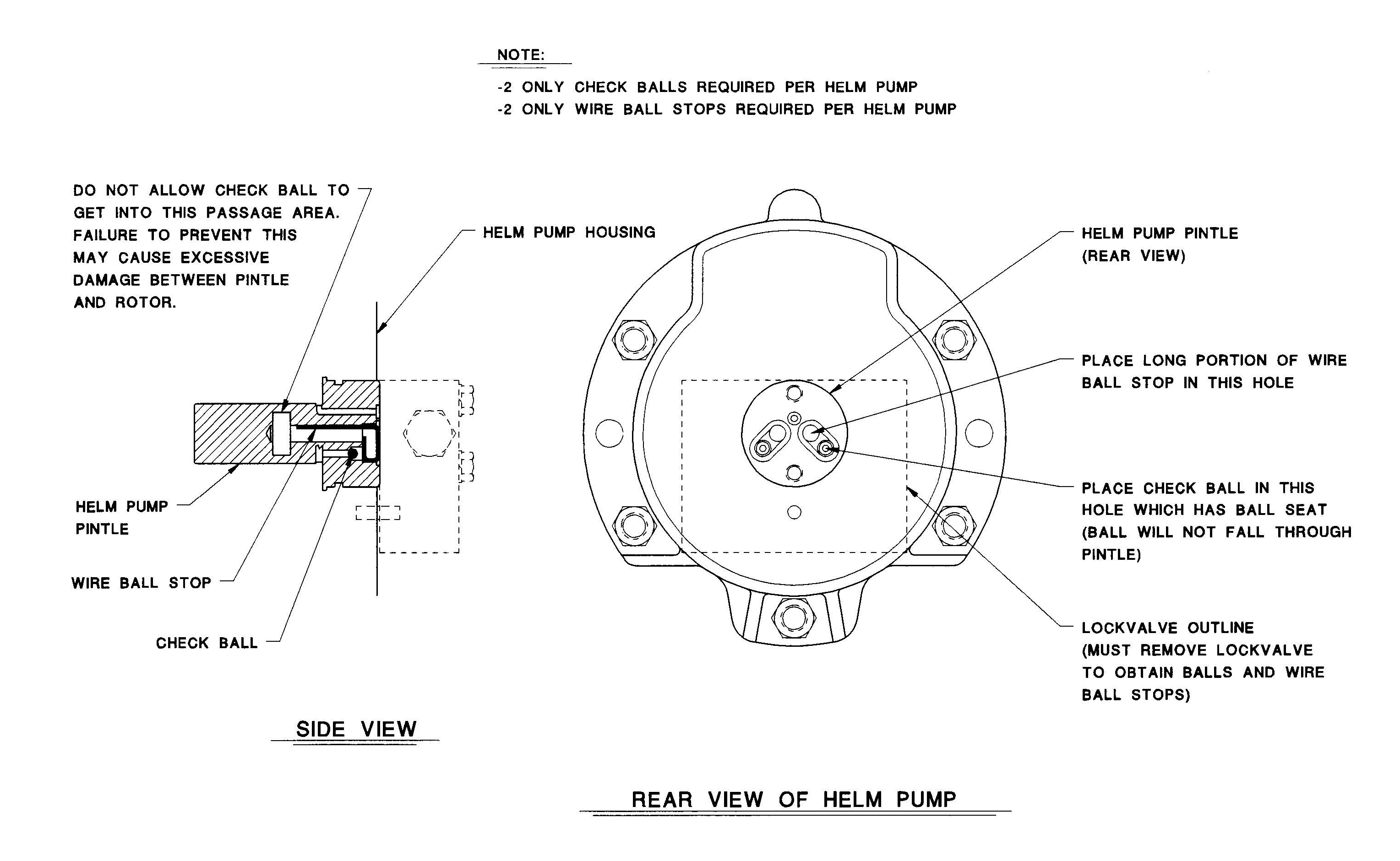

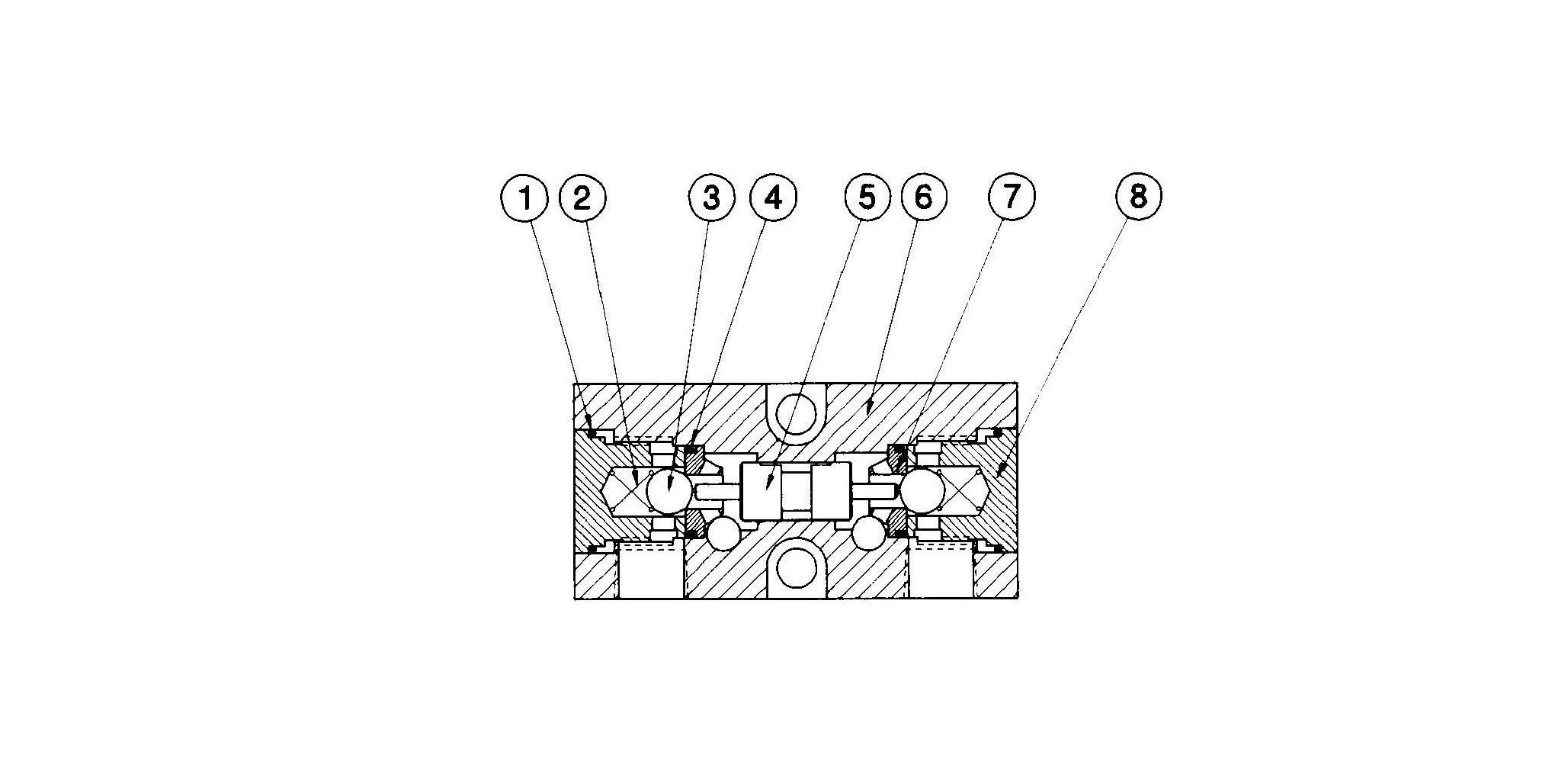

Model B1-B2 Helm Pump Check Ball Orientation Diagram

Parts Available

Wagner Engineering is committed to helping you maintain your vessel's steering. Please contact your dealer for details.

SEAL KIT

ITEMPART NUMBERDESCRIPTION
15, 19, 26, 29WA-119-0085B Pump seal kit
includes the following:
  • 2x O-ring PN WA-11-106016
  • 1x O-ring PN WA-11-106006
  • 1x Gasket PN WA-10-300014
  • 1x Shaft seal PN WA-10-500009

REPLACEMENT CYLINDER

OLDNEW
PART NUMBERDESCRIPTIONPART NUMBERDESCRIPTION
WA-300-0008B1JA-301001-4H26
WA-300-0009B2JA-301001-5H36

Note: This is not a drop in replacement. Physical size is different. To view the new replacement helm pumps, click on the part number above.

Our dealers carry inventory and parts can be ordered from your local dealer.
