Model T10 & T11

Wagner Engineering is committed to helping you maintain your vessel's steering. Please contact your dealer for details.

Diagram (tap or hover over diagram to zoom)

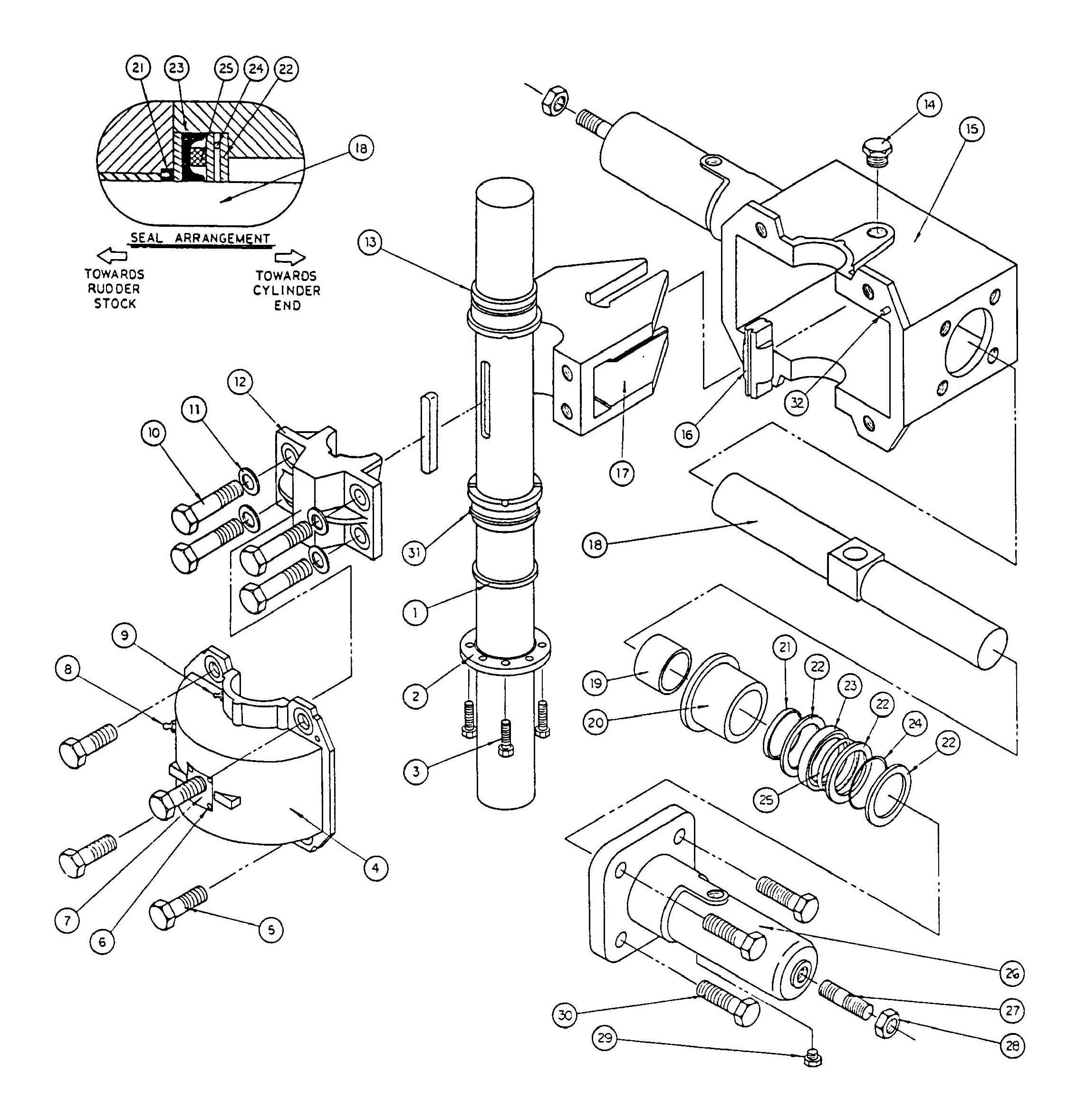

Model T10 & T11 Actuator Assembly Diagram

Parts Available

Wagner Engineering is committed to helping you maintain your vessel's steering. Please contact your dealer for details.

SEAL KIT

ITEMPART NUMBERDESCRIPTION
23JB-205012U-Cup seal
21WA-11-208024U-Cup scraper/wiper
-WA-119-0024T10 & T11 Seal kit
includes the following:
  • 2 x U-cup seal
  • 2 x U-cup scraper/wiper
  • 2 x spring coil
  • 2 x flax packing
  • 6 x bronze ring

REPLACEMENT K-RAM

OLDNEW
PART NUMBERDESCRIPTIONPART NUMBERDESCRIPTION
WA-800-0005T10JA-801003-2K-7-45 ram

Replacement K-Rams are drop-in replacements. For more information please contact your dealer or contact Jastram directly.
